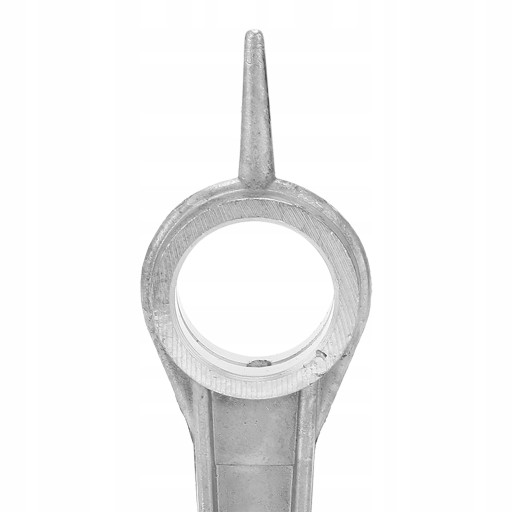

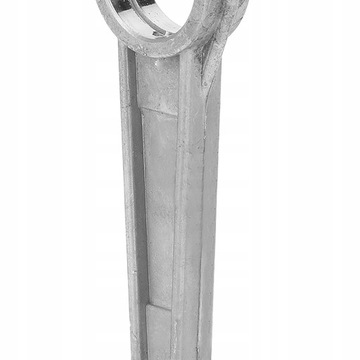

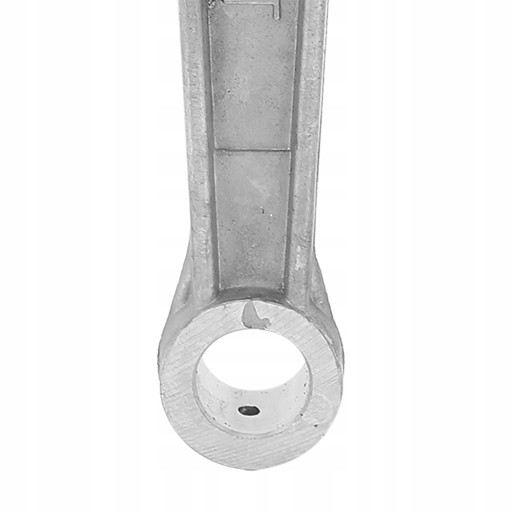

АЛЮМИНИЕВЫЙ ШАТУН КОМПРЕССОРА 23.12.89

Feature:

1. The connecting rod crankshaft size is standard, it is an accurate air compressor air pump accessory.

2. The casting size tolerance is CT6 level specified in GB6414, and the error value is not more than

3. Made of high‑quality cast aluminum material, light and portable, small inertia, and corrosion resistance.

4. The surface is sandblasted, and there are no casting defects such as sand holes, cracks, looseness, and slag inclusions.

5. The connecting rod has strong rigidity, has sufficient fatigue strength requirements, and the overall performance is stable.

. ALUMINIUM KORBOWÓD KOMPRESOR 12/23/89

Specification:

Item Type: Connecting Rod Crankshaft

Material: Cast aluminum

Model: 12x23x89mm

Small Hole Diameter: Approx. 12 ± 1mm/ 0.5 ± 0.04in

Large Hole Diameter: Approx. 23 ± 1mm / 0.9 ± 0.04in

Two Holes Center Distance: Approx. 89 ± 1mm / 3.5 ± 0.04in

Two Holes Shortest Distance: Approx. 71.5mm / 2.8in

Purpose: Air compressor air pump accessories

. ALUMINIUM KORBOWÓD KOMPRESOR 12/23/89

Package List:

1 x Connecting Rod Crankshaft

. ALUMINIUM KORBOWÓD KOMPRESOR 12/23/89
