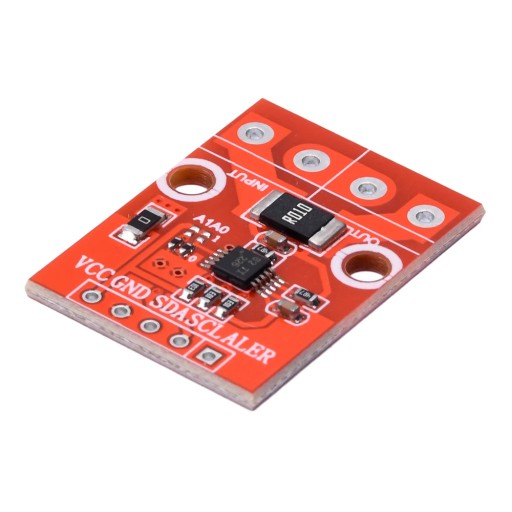

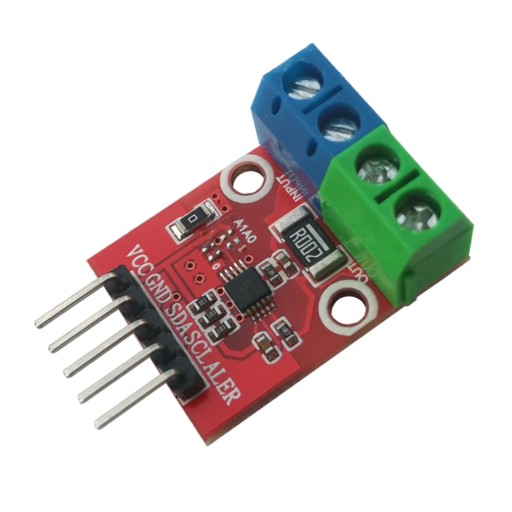

INA226 Модуль датчика контроля напряжения тока CJMCU-226 IIC I2C

Features:

The INA226 is a current shunt and power monitor with an I2C or SMBUS compatible interface.

The device simultaneously monitors the shunt voltage drop and the bus supply voltage.

Programmable calibration values, conversion times and averaging combined with an internal multiplier allow direct reading of current in amperes and power in watts.

The INA226 senses the current on the common-mode bus voltage, which can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply and typically consumes 330 µA.

The device is rated for operation from –40°C to 125xC2°C and has up to 16 programmable addresses on an I 2 C compatible interface.

Product parameters:

Measuring voltage: 0 V to 36 V (cannot measure negative voltage)

Measuring current: -20A to +20A

Bi-directional correspondence → current can be sensed from both high and low sides.

Supply voltage: 2.7V to 5.5V*

Interface: l2C

I2C address: 16 can be set through solder joints

Input offset voltage: ±10μV

Accuracy: 1% soil

Resolution: 16 bits (current: 1.25mA, voltage: 1.25mV)

Current consumption: below 1mA

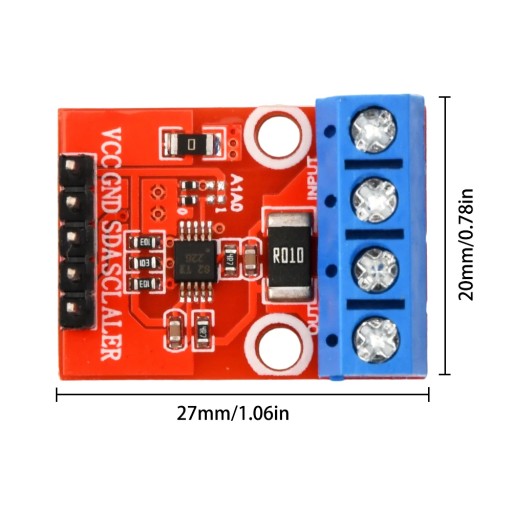

Size: 20mmx27mm (fixing hole 3mm)

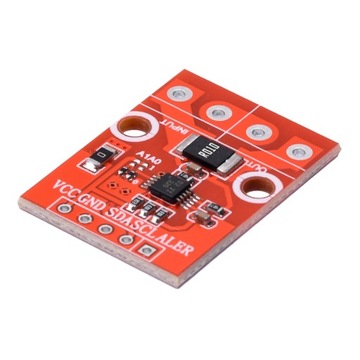

Instructions for use:

VCC: power input 2.7-5.5V

GND: Negative pole of power supply

SDA, SCL: lIC bus data and clock signal lines

ALERT: multi-function alarm output

AO, A1: IIC address line

Notice:

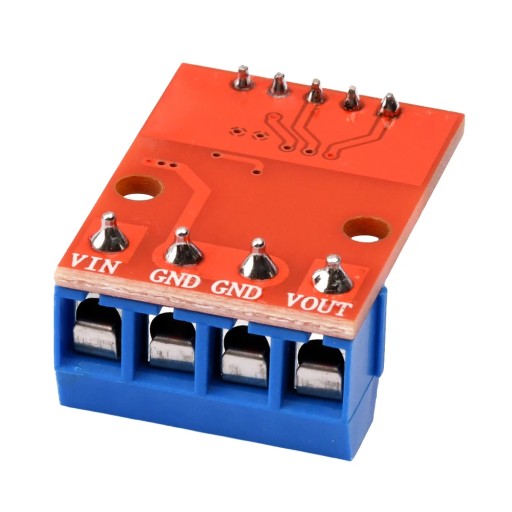

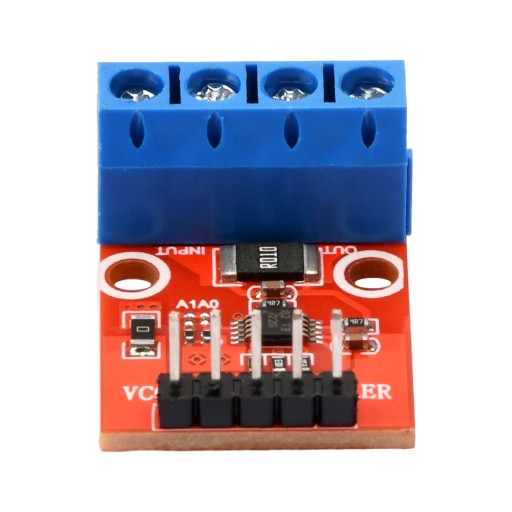

*VIN power supply positive pole measures voltage, CND power supply negative pole measures voltage, VOUT measures current input and output, this module can only measure 0-36V DC power supply, the maximum current cannot exceed 20A, VCC voltage 2.7-5.5V, GND-GND, more Parameters can refer to the data sheet.

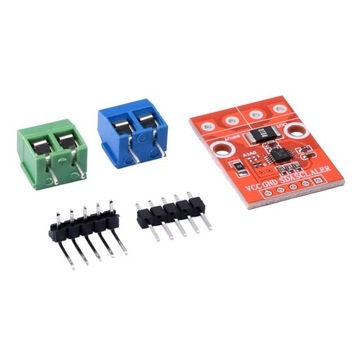

Product List

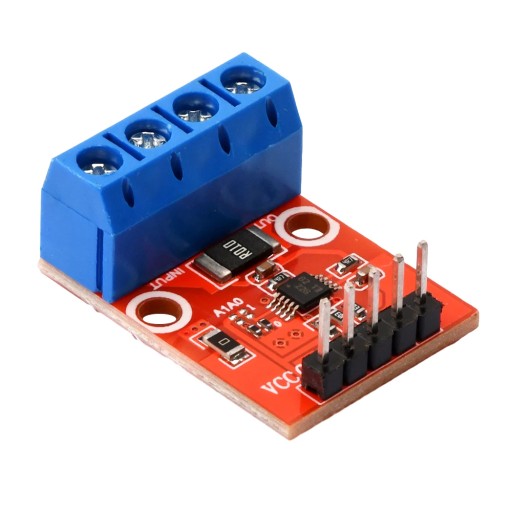

Set one: (unsoldered)

1X module

2X header

1X terminal

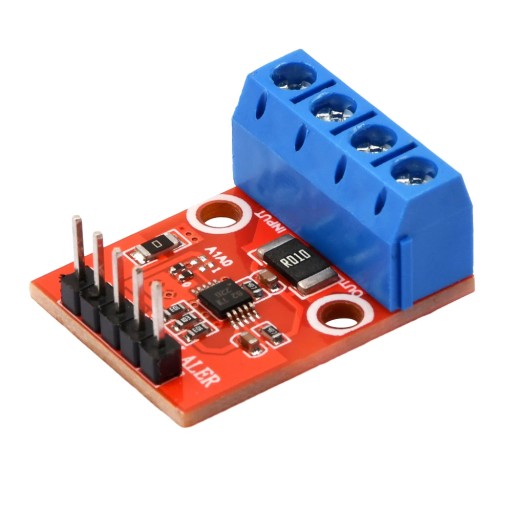

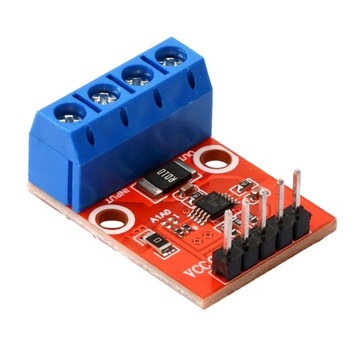

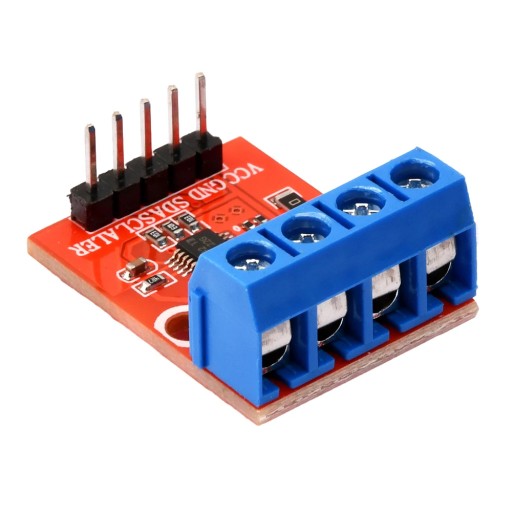

Set two: (welded)

1X module
