Product description

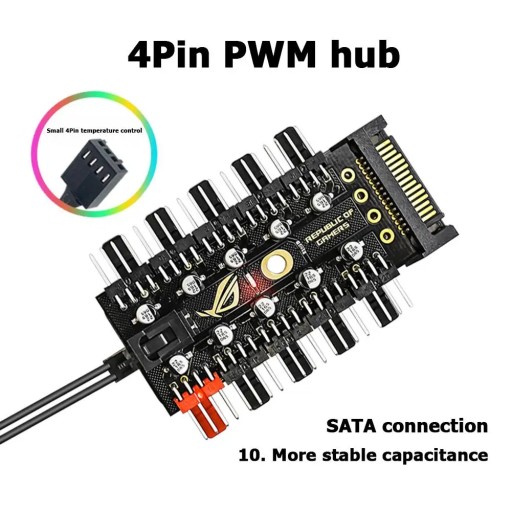

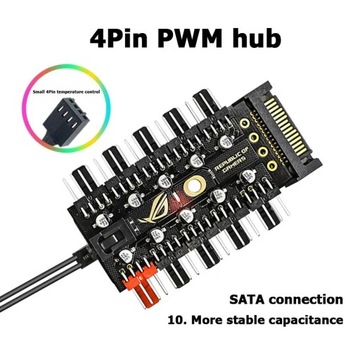

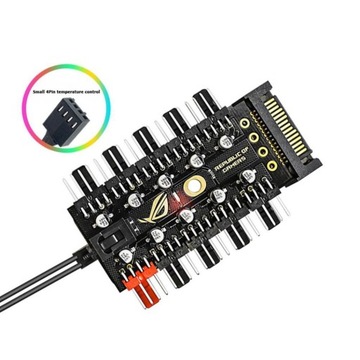

Motherboard 4 Pin PWM Cooler Fan HUB Splitter Power Supply Socket PC 1 to 10 10Pin PWM Fan Speed Controller Practical Regulator Splitter

1. Expand the 10-pin fan 4-pin interface to solve the lack of motherboard interface and centralize the processing of fan wires.

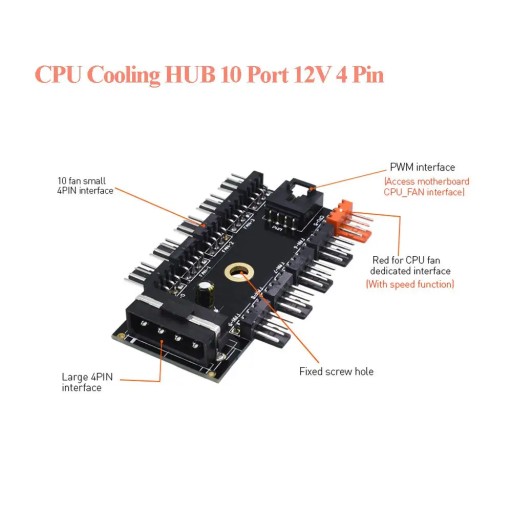

2. The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).

3. The power supply can be directly powered by the power supply, which can reduce the load pressure on the motherboard. The temperature control line PWM is separately connected from the motherboard, and the power supply and temperature control are correct.

4. Scope of application: suitable for 12V motherboard 3pin / 4pin fan, 3pin fan can also be used, but plug in to run at full speed, because 3pin fan has no PWM speed regulation

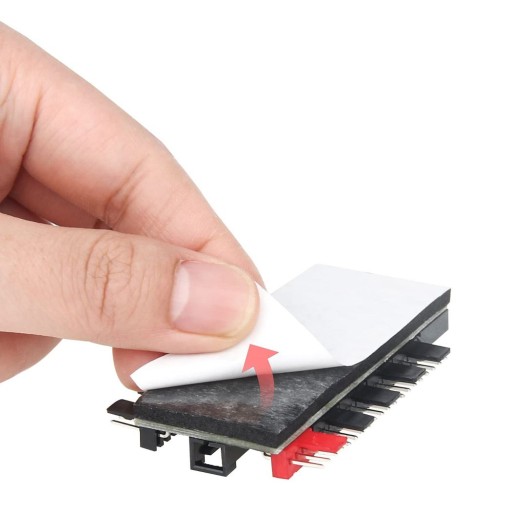

5: The back of the hub PCB board has 3M adhesive, which is convenient for sticking in a flat place. Also comes with a fixed reel hole (product comes with a 40cm long PWM temperature control cable)

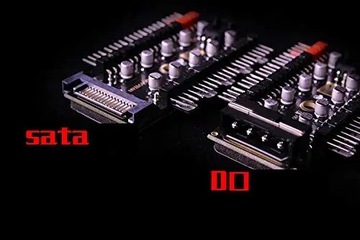

Power supply interface: SATA and big 4Pin interface (optional)

Number of fan interfaces: 10

Fan interface: 4pin

Product size: 70 * 45 * 7mm

Motherboard 4 Pin PWM Cooler Fan HUB Splitter Power Supply Socket PC 1 to 10 10Pin PWM Fan Speed Controller Practical Regulator
