Преобразователь питания 36В 1А

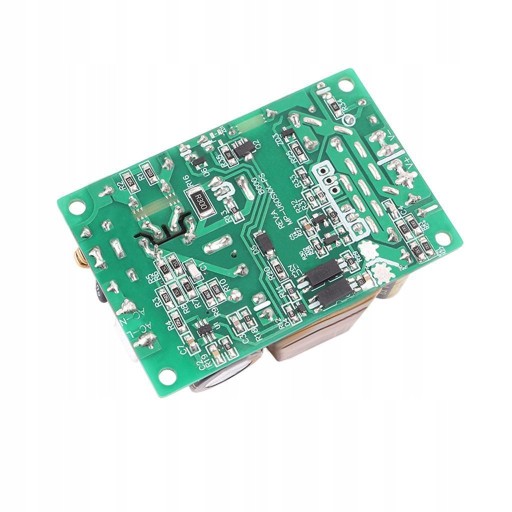

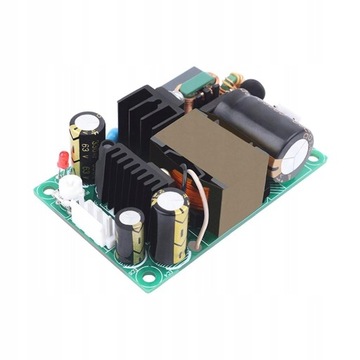

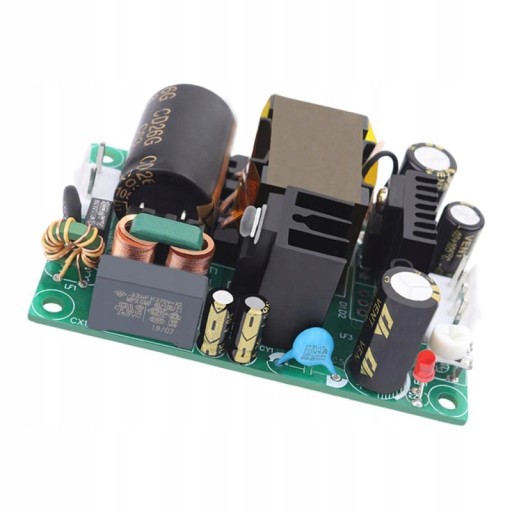

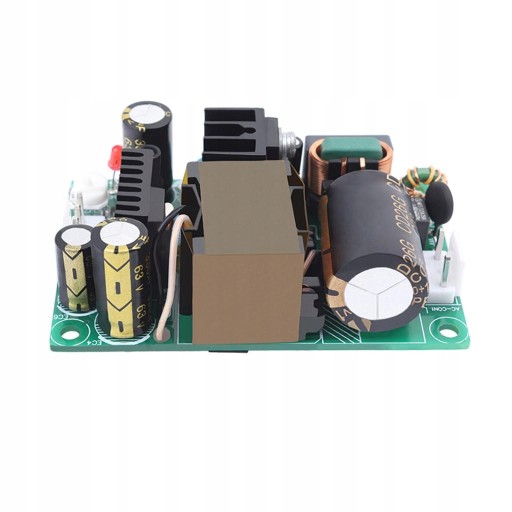

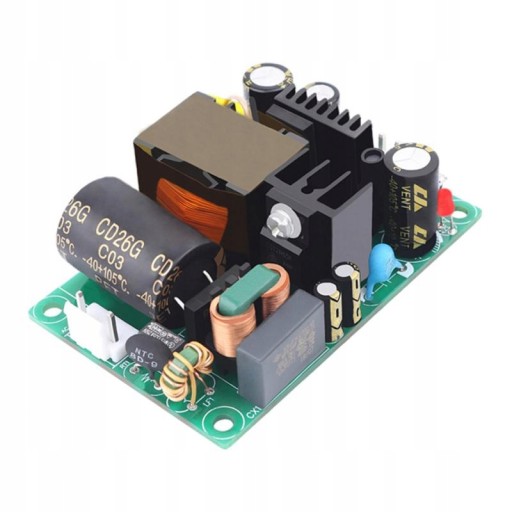

36V 1A1.5A Switching Power Supply Board Converter Module AC/DC to 36V54W

Description:

Brand new, high quality

Wide input voltage range

Overload, short circuit, overvoltage protection

Small size, high efficiency

Low no-load power consumption

Specification:

Output voltage: 36V

Rated current: 1.5A

Current range: 0-1.5A

Rated Power: 54W

Efficiency: 89%

Ripple: 120mVp-p

Output voltage range: 30-55V

Voltage regulation: ±1.0%

Line Regulation: ±0.5%

Load regulation: ±1.0%

Input voltage range: 90～264V AC(DC 127V～370V)

Frequency range: 47Hz-63Hz

Alternating current: ＜1500mA; No-load＜0.5W

Surge current: (Cold Start) 30A/230VAC

Leak current: ＜2mA/240VAC

Overpower protection: 115-180% rated power, Fault removal automatic recovery

Output short circuit protection

Operating temperature & humidity: -25℃～ 60℃; 20%-90% RH

Storage temperature & humidity: -40℃～ 85℃; 10%-95% RH

Withstand voltage: I/P-O/P:3KVAC

Insulation resistance: I/P-O/P,500VDC/100M Ohms/25℃/70% RH

Size: 76x50x27.1mm

Weight: 90g

Package Includes:

1 x 36V 1A1.5A Switching Power Supply Board Module
