USB-тестер FNB58, цифровой вольтметр, тестер тока USB Type-C, быстрая зарядка

About this item

• Fast Charge Recognition Mode: PD2.0, PD3.0, PPS, QC2.0, QC3.0, QC4, FCP, AFC, PE, DASH VOOC, SuperVOOC, etc. (NOTES: Without Bluetooth Function)
• Super Compatibility Ultra-Precise Data Detection: 0.0001 low resolution, real-time detection of subtle changes in voltage, current and power while recharging.
• 10 Groups Of Energy Recording Battery Capacity Calculation: Support 10 sets of charge and discharge energy data records. Built in battery capacity calculation formula. The battery capacity can be quickly calculated from the recorded data.
• Four Functions Curve Display: 1. Real-time voltage and current curve for view recharging curve changes in real time Abnormal recharging is found immediately; 2. The offline curve recording support up to 9 hours offline voltage and current curve recording, show up during recharging; 3. D D1 voltge curve can show the recharging protocols changes and master in time; 4. The high-speed power supplys ripple measurement curve can show you the chargers ripple measurement.

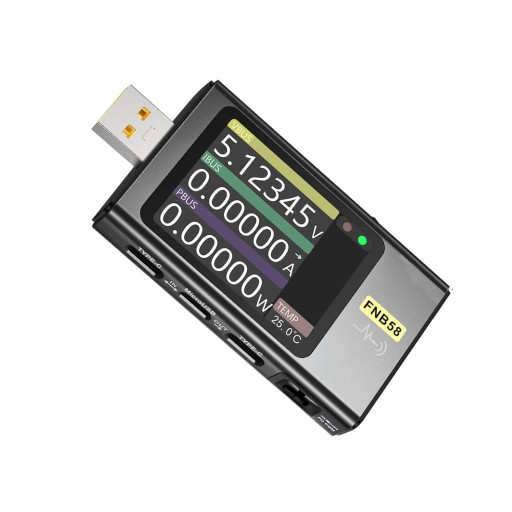

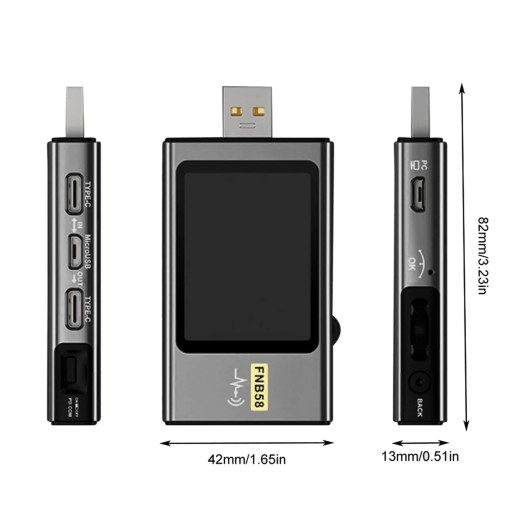

• LCD Display: 2.0-inch LCD high-definition display, the measurement data is clearly visible. Compatible with all interfaces, equipped with 5P high current USB-A, 24P full-pin Type-C input and output interface, one step faster for charging detection.

Product Description

Features:

1. FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.

2. PD E-MARKER CABLE DETECTION function makes it read data information of line with E-Marker chip, and DASH CABLE DETECTION function makes it read DASH cable chip related data, also support cable internal resistance measurement.

3. Use external 16-bit ADC, PD protocol physical chip.

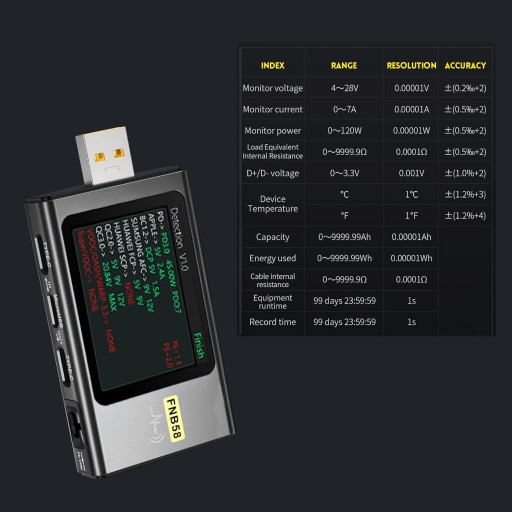

Specifications:

Type: Without BT function

Equipment Temperature: ℃/℉

Device Uptime: 99 days 23 hours 59 minutes 59 seconds

Record Time: 99 days 23 hours 59 minutes 59 seconds

Monitor Voltage:

Ranges: 428V

Resolution: 0.00001V

Accuracy: (0.2‰ 2)

Monitor Current: Ranges: 07A

Resolution: 0.00001A

Accuracy: (0.5‰ 2)

Monitor Power:

Ranges: 0120W

Resolution: 0.00001W

Accuracy: (0.5‰ 2)

Load Equivalent Internal Resistance:

Ranges: 09999.9Ω

Resolution: 0.0001Ω Accuracy: (0.5‰ 2) D /D-

Voltage:

Ranges: 03.3V Resolution: 0.001V

Accuracy: (1.0％ 2)

Capacity:

Ranges: 09999.99Ah

Resolution: 0.00001Ah

Energy Used:

Ranges: 09999.99Wh

Resolution: 0.00001Wh

Cable Resistance:

Ranges: 09999.9Ω

Resolution: 0.0001Ω

Package Includes:

1 x FNB58 USB

Notes: Do not connect the monitoring interface to a power supply exceeding 28V.
