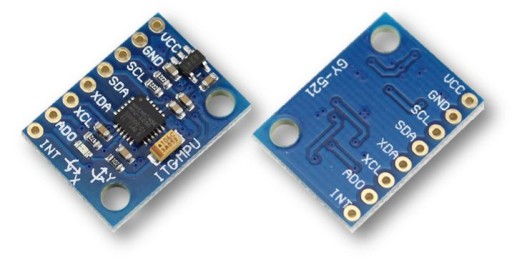

Модуль MPU 6050 Гироскоп + акселерометр ARDIONO и т. д.

MPU6050

MPU 6050 moduł żyroskopu i akcelerometru

Features:

• I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
• Input Voltage: 2.3 - 3.4V
• Selectable Solder Jumpers on CLK, FSYNC and AD0
• Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
• Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
• Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
• Embedded algorithms for run-time bias and compass calibration. No user intervention required
• Digital-output temperature sensor

W zestawie:

• Moduł MPU6050
• Listwy goldpin
