Датчик температуры и влажности THW-01 SUPLA

Temperature and humidity sensor THW-01 SUPLA

Temperature and humidity sensor SUPLA NEW !!!

In short, what is THW-01?

SPL10000041

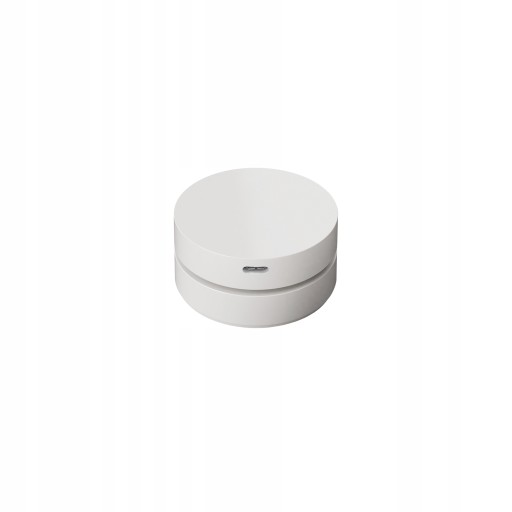

A modern, easy to install and use temperature and humidity sensor. THW-01 is a small device that you can place almost anywhere where you want to read temperature and humidity. All you need is Wi-Fi coverage and power supplied via Micro USB cable to add THW-01 to your Supla account and analyze the measurements on the phone screen. The sensor works in the temperature ranges -25 ° C ÷ 55 ° C and humidity 0 ÷ 99%. The THW-01 temperature and humidity sensor can be placed, mounted on a wall or attached to a metal surface using the magnet built into the housing.

Characteristics:

Rated voltage: 5V DC (external power source)

Voltage tolerance: -20% to 15%

Nominal power consumption: 0.45 W

Frequency: 50/60 Hz

Working temperature range: -25 ° C ÷ 55 ° C

Optical indication of power supply: LED diode

Transmission: Wi-Fi 2.4GH 802.11 b / g / n

Operation range: Wi-Fi network range

Physical quantities measured: Temperature, humidity

Measuring sensors used: Digital - built-in sensor

Temperature measurement range: - 20 ° C ÷ 55 ° C

Humidity measurement range: 0 ÷ 99%

Measurement accuracy: Temperature: /- 0.5 ° C, Humidity: /- 5%

Environmental resistance: IP20

Number of connection terminals: 1 - micro USB socket

Mounting the housing: Stand - fixed with screws Built-in magnet - can be mounted on a magnetic surface

Dimensions: Ø 50 mm, height: 13 mm (26 mm with a stand)

Weight: Without stand: 0.02 kg, with stand: 0.04 kg
