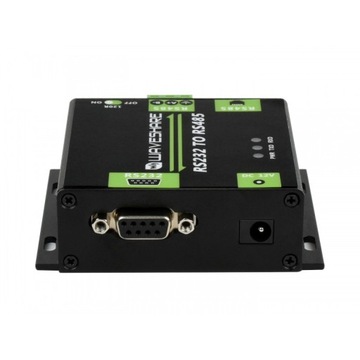

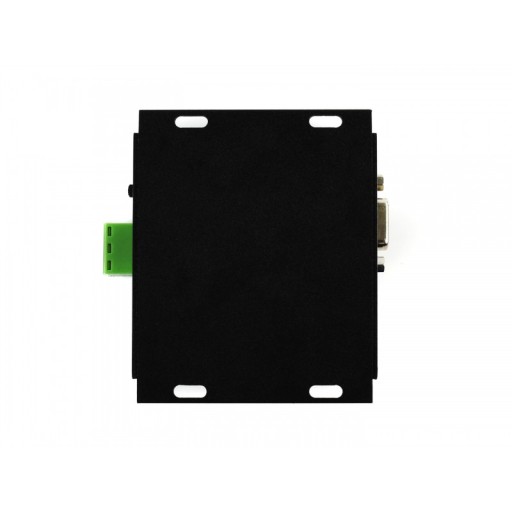

Преобразователь RS485 - RS232. Двунаправленное разделение.

Industrial RS232 TO RS485 Converter

Industrial Grade Isolated RS232 TO RS485 Asynchronous Bi-Directional Converter

Embedded TVS (Transient Voltage Suppressor) And Lightning-Proof Diodes

Dodatkowe informacje: Wiki: www.waveshare.com/wiki/RS232_TO_RS485

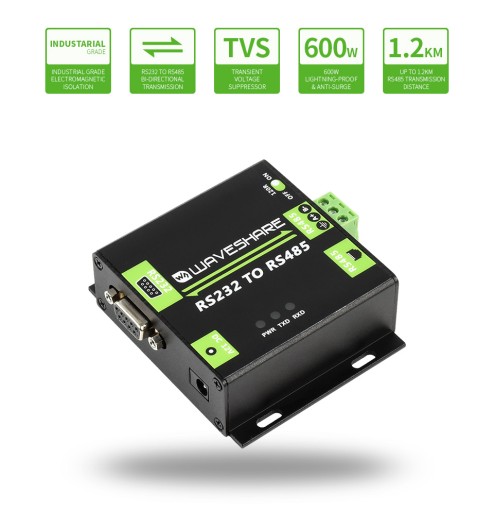

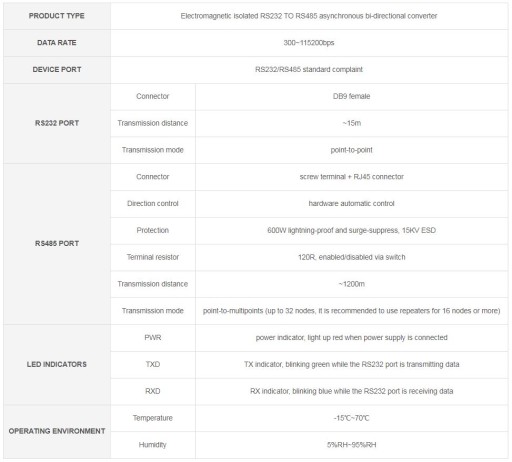

Features At A Glance

• Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
• Stable transmission on rate of 300~115200bps
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance
• Integrates optional RS485 output terminal 120R resistor, enabled/disabled via switch
• DC-005 power jack, allows 6V~36V DC wide range input, suits different application situations
• 3x LED indicators, easy to check the operating status: power, transmitting, and receiving
• Aluminium alloy enclosure with sand blasting and anodic oxidation, solid and durable

1200m Long Distance Transmission

Converting The RS232 Signal Into Balanced Differential RS485 Signal

Stable transmission on rate of 300~115200bps, about 1200m transmission distance of RS485, about 15m transmission distance of RS232

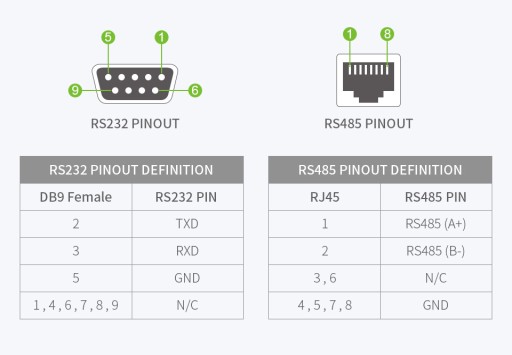

Connectors & Pinout Definition

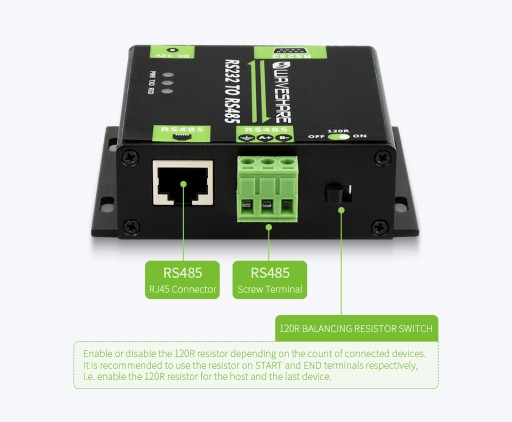

Provides Both Screw Terminal And RJ45 Connector For RS485, Meets Different Industrial Application Requirements

Application Examples

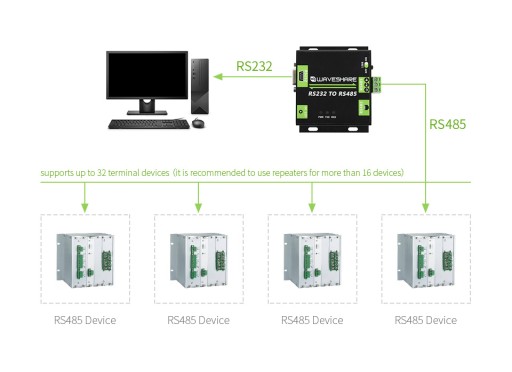

The RS232 TO RS485 Converter Can Be Widely Used For Point-To-Point, Point-To-Multipoint, Long Distance Cascaded Communication Network Between Two Hosts, Or Between Host And MCU/Peripheral

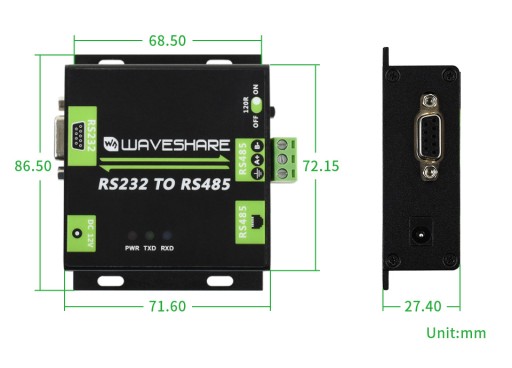

Outline Dimensions

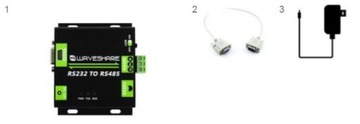

W zestawie:

1. RS232 TO RS485 x1
2. 1.5m male-to-female serial cable x1
3. 12V power adapter x1
